Longitudinal AGMM Notebook: Direct NNPIV Pipeline + Diagnostics

This notebook is a direct, minimal working example (no training wrappers) showing:

  1. Data generation and true targets (g0, h0)

  2. Pre-estimation Diagnostic A (kappa) and divergence check over J and eta

  3. Sequential AGMM and simultaneous AGMM2L2 fits (explicit syntax)

  4. First- and second-stage function plots

  5. Post-estimation effective-kappa comparison (kappa_eff) for sequential vs simultaneous

1) Imports and setup

import os
import sys
from pathlib import Path

import numpy as np
import pandas as pd
import matplotlib.pyplot as plt

# Thread controls for stable local runs
os.environ.setdefault("OMP_NUM_THREADS", "1")
os.environ.setdefault("OPENBLAS_NUM_THREADS", "1")
os.environ.setdefault("MKL_NUM_THREADS", "1")
os.environ.setdefault("VECLIB_MAXIMUM_THREADS", "1")
os.environ.setdefault("NUMEXPR_NUM_THREADS", "1")


def seed_everything(seed: int = 123) -> None:
    import random
    import torch
    random.seed(seed)
    np.random.seed(seed)
    torch.manual_seed(seed)
    if torch.cuda.is_available():
        torch.cuda.manual_seed_all(seed)

seed_everything(123)

NOTEBOOK_DIR = Path.cwd()
REPO_ROOT = NOTEBOOK_DIR
if not (REPO_ROOT / "nnpiv").exists():
    REPO_ROOT = NOTEBOOK_DIR.parent.parent
if not (REPO_ROOT / "nnpiv").exists():
    raise RuntimeError("Could not resolve repo root containing nnpiv.")

if str(REPO_ROOT) not in sys.path:
    sys.path.insert(0, str(REPO_ROOT))
if str(REPO_ROOT / "simulations") not in sys.path:
    sys.path.insert(0, str(REPO_ROOT / "simulations"))

import dgps_nested as dgps

import torch
import torch.nn as nn
from nnpiv.neuralnet import AGMM, AGMM2L2
from nnpiv.diagnostics import (
    relative_wellposedness_from_nested_npiv,
    relative_wellposedness_sieve_from_nested_npiv,
    relative_wellposedness_effective_sieve_from_nested_npiv,
)

DEVICE = torch.device("cuda") if torch.cuda.is_available() else torch.device("cpu")
plt.style.use("seaborn-v0_8-white")
plt.rcParams["figure.dpi"] = 120

try:
    torch.set_num_threads(1)
    torch.set_num_interop_threads(1)
except Exception:
    pass

2) Helper builders

p_dropout = 0.10
n_hidden = 100


def get_learner(n_t: int) -> nn.Module:
    return nn.Sequential(
        nn.Dropout(p=p_dropout),
        nn.Linear(n_t, n_hidden),
        nn.LeakyReLU(),
        nn.Dropout(p=p_dropout),
        nn.Linear(n_hidden, 1),
    )


def get_adversary(n_z: int) -> nn.Module:
    return nn.Sequential(
        nn.Dropout(p=p_dropout),
        nn.Linear(n_z, n_hidden),
        nn.LeakyReLU(),
        nn.Dropout(p=p_dropout),
        nn.Linear(n_hidden, 1),
    )


def make_test_grid(X: np.ndarray, var_idx: int = 0, n: int = 1000, q_low: float = 5.0, q_high: float = 95.0) -> np.ndarray:
    grid = np.tile(np.median(X, axis=0, keepdims=True), (n, 1))
    grid[:, var_idx] = np.linspace(np.percentile(X[:, var_idx], q_low), np.percentile(X[:, var_idx], q_high), n)
    return grid[np.argsort(grid[:, var_idx])]

3) Data generation (original DGP configuration)

# =========================================================
# Data generation
# =========================================================
# Function dictionary (for reference):
# {'abs': 0, '2dpoly': 1, 'sigmoid': 2, 'sin': 3, 'frequent_sin': 4, 'abs_sqrt': 5,
#  'step': 6, '3dpoly': 7, 'linear': 8, 'rand_pw': 9, 'abspos': 10, 'sqrpos': 11,
#  'band': 12, 'invband': 13, 'steplinear': 14, 'pwlinear': 15, 'exponential': 16}

fn_number = 0
raw_tau_fn = dgps.get_tau_fn(fn_number)

# A, D are first stage (endog + instruments); B, C are second stage; Y is outcome
A, D, B, C, Y, truth = dgps.get_data(
    3000, 10, 10, raw_tau_fn, 2, return_truth=True
)

B_test = make_test_grid(B, var_idx=0, n=1000, q_low=5, q_high=95)
A_test = make_test_grid(A, var_idx=0, n=1000, q_low=5, q_high=95)

# Standardized truth functions used for plots / effective-kappa error direction
h0_B_test = np.asarray(truth.h(B_test)).reshape(-1)
g0_A_test = np.asarray(truth.g(A_test)).reshape(-1)
g0_A_train = np.asarray(truth.g(A)).reshape(-1)

print("Shapes:", A.shape, D.shape, B.shape, C.shape, Y.shape)

Shapes: (3000, 10) (3000, 10) (3000, 10) (3000, 10) (3000, 1)

4) Pre-estimation diagnostics (Diagnostic A)

# Explicit diagnostic options
feature_map = "rff"
sieve_grid = [50, 100, 200, 300]
eta_grid = [1e-3, 1e-4, 1e-5, 1e-6, 1e-7, 1e-8]
eta_mode = "sigma_i"
ridge_alpha = 1.0
random_state = 123

# Point diagnostic at largest J / smallest eta
diag_point = relative_wellposedness_from_nested_npiv(
    A=A,
    D=D,
    B=B,
    C=C,
    feature_map=feature_map,
    n_features=max(sieve_grid),
    eta=min(eta_grid),
    eta_mode=eta_mode,
    ridge_alpha=ridge_alpha,
    random_state=random_state,
)

# Sieve diagnostic across J and eta
diag_sieve = relative_wellposedness_sieve_from_nested_npiv(
    A=A,
    D=D,
    B=B,
    C=C,
    feature_map=feature_map,
    sieve_grid=sieve_grid,
    eta_grid=eta_grid,
    eta_mode=eta_mode,
    ridge_alpha=ridge_alpha,
    random_state=random_state,
    enforce_nested_rff=True,
)

# Robust extraction (works even if some keys are unavailable in older diagnostics builds)
pre_point_df = pd.DataFrame([
    {
        "kappa": diag_point.get("kappa", np.nan),
        "kappa2": diag_point.get("kappa2", np.nan),
        "nullspace_violation_flag": diag_point.get("nullspace_violation_flag", False),
        "nullspace_leakage": diag_point.get("nullspace_leakage_sigma_t_on_null_sigma_s", np.nan),
        "stabilization_dominance_ratio": diag_point.get("stabilization_dominance_ratio", np.nan),
        "max_diag_ratio": diag_point.get("max_diag_ratio_sigma_t_over_sigma_s", np.nan),
    }
])

display(pre_point_df.round(6))

pre_sieve_df = pd.DataFrame(diag_sieve["rows"]).sort_values(["eta", "sieve_value"]).reset_index(drop=True)
pre_sieve_df = pre_sieve_df.rename(columns={"sieve_value": "J"})
for maybe_col, fallback in [
    ("nullspace_violation_flag", False),
    ("nullspace_leakage_sigma_t_on_null_sigma_s", np.nan),
    ("stabilization_dominance_ratio", np.nan),
    ("kappa_cummax", np.nan),
]:
    if maybe_col not in pre_sieve_df.columns:
        pre_sieve_df[maybe_col] = fallback

pre_eta_summary = (
    pre_sieve_df.groupby("eta", as_index=False)
    .agg(
        mean_kappa=("kappa", "mean"),
        max_kappa=("kappa", "max"),
        any_nullspace_violation=("nullspace_violation_flag", "max"),
        mean_nullspace_leakage=("nullspace_leakage_sigma_t_on_null_sigma_s", "mean"),
        mean_stab_dom_ratio=("stabilization_dominance_ratio", "mean"),
    )
    .sort_values("eta")
)

display(pre_eta_summary.round(6))
kappa kappa2 nullspace_violation_flag nullspace_leakage stabilization_dominance_ratio max_diag_ratio
0 3868.804021 1.496764e+07 True 0.002695 0.0 4.513571
eta mean_kappa max_kappa any_nullspace_violation mean_nullspace_leakage mean_stab_dom_ratio
0 0.000000 3262.802329 3868.804021 True 0.001398 0.000000
1 0.000000 1031.786043 1223.412196 True 0.001398 0.000000
2 0.000001 326.279775 386.876935 True 0.001398 0.000001
3 0.000010 103.179945 122.341466 True 0.001398 0.000013
4 0.000100 32.632218 38.688515 True 0.001398 0.000134
5 0.001000 10.331198 12.236727 True 0.001398 0.001343
# Plot 1: kappa vs J for each eta
fig, ax = plt.subplots(figsize=(8, 4))
for eta in sorted(pre_sieve_df["eta"].unique()):
    g = pre_sieve_df[pre_sieve_df["eta"] == eta].sort_values("J")
    ax.plot(g["J"], g["kappa"], marker="o", label=f"eta={eta:g}")
ax.set_title("Pre-diagnostic: kappa vs J")
ax.set_xlabel("J")
ax.set_ylabel("kappa")
ax.grid(alpha=0.3)
ax.legend(frameon=False, fontsize=8, ncol=2)
plt.tight_layout()
plt.show()

# Plot 2: eta sensitivity at largest J
J_star = max(sieve_grid)
eta_slice = pre_sieve_df[pre_sieve_df["J"] == J_star].sort_values("eta")

fig, ax = plt.subplots(figsize=(8, 4))
ax.plot(eta_slice["eta"], eta_slice["kappa"], marker="o", label="kappa")
if eta_slice["kappa_cummax"].notna().any():
    ax.plot(eta_slice["eta"], eta_slice["kappa_cummax"], "--", label="kappa_cummax")
ax.set_xscale("log")
ax.set_yscale("log")
ax.set_title(f"Pre-diagnostic: eta sensitivity at J={J_star}")
ax.set_xlabel("eta")
ax.set_ylabel("kappa")
ax.grid(alpha=0.3)
ax.legend(frameon=False)
plt.tight_layout()
plt.show()
../_images/longitudinal_notebook_agmm_9_0.png ../_images/longitudinal_notebook_agmm_9_1.png

5) Sequential AGMM fit

fitargs_seq = dict(
    n_epochs=150,
    bs=256,
    learner_lr=1e-4,
    adversary_lr=1e-4,
    learner_l2=1e-3,
    adversary_l2=1e-4,
)

# Build models
agmm_stage1 = AGMM(get_learner(A.shape[1]), get_adversary(D.shape[1]))  # first stage
agmm_stage2 = AGMM(get_learner(B.shape[1]), get_adversary(C.shape[1]))  # second stage

# Tensor conversion
A_t = torch.as_tensor(A, dtype=torch.float32, device=DEVICE)
B_t = torch.as_tensor(B, dtype=torch.float32, device=DEVICE)
C_t = torch.as_tensor(C, dtype=torch.float32, device=DEVICE)
D_t = torch.as_tensor(D, dtype=torch.float32, device=DEVICE)
Y_t = torch.as_tensor(Y, dtype=torch.float32, device=DEVICE)
A_test_t = torch.as_tensor(A_test, dtype=torch.float32, device=DEVICE)
B_test_t = torch.as_tensor(B_test, dtype=torch.float32, device=DEVICE)

# First stage: fit g using (D, A, Y)
agmm_stage1.fit(D_t, A_t, Y_t, device=DEVICE, **fitargs_seq)
g_hat_A_train_seq = np.asarray(agmm_stage1.predict(A_t)).reshape(-1)
g_hat_A_test_seq = np.asarray(agmm_stage1.predict(A_test_t)).reshape(-1)

# Second stage: fit h using (C, B, target=g_hat_A_train)
g_hat_A_train_seq_t = torch.as_tensor(g_hat_A_train_seq.reshape(-1, 1), dtype=torch.float32, device=DEVICE)
agmm_stage2.fit(C_t, B_t, g_hat_A_train_seq_t, device=DEVICE, **fitargs_seq)
h_hat_B_test_seq = np.asarray(agmm_stage2.predict(B_test_t)).reshape(-1)

print("Sequential AGMM fit done.")

Sequential AGMM fit done.

6) Simultaneous AGMM2L2 fit

n_epochs_sim = 350

agmm2l2_model = AGMM2L2(
    learnerh=get_learner(B.shape[1]),
    learnerg=get_learner(A.shape[1]),
    adversary1=get_adversary(D.shape[1]),
    adversary2=get_adversary(C.shape[1]),
)

agmm2l2_model.fit(A_t, B_t, C_t, D_t, Y_t, n_epochs=n_epochs_sim, device=DEVICE)

# Test predictions
h_hat_B_test_sim, g_hat_A_test_sim = agmm2l2_model.predict(B_test_t, A_test_t)
h_hat_B_test_sim = np.asarray(h_hat_B_test_sim).reshape(-1)
g_hat_A_test_sim = np.asarray(g_hat_A_test_sim).reshape(-1)

# Train-A predictions for post-diagnostic e_g
a_dummy_h_train, g_hat_A_train_sim = agmm2l2_model.predict(B_t, A_t)
g_hat_A_train_sim = np.asarray(g_hat_A_train_sim).reshape(-1)

print("Simultaneous AGMM2L2 fit done.")

Simultaneous AGMM2L2 fit done.

7) Stage plots and RMSE summary

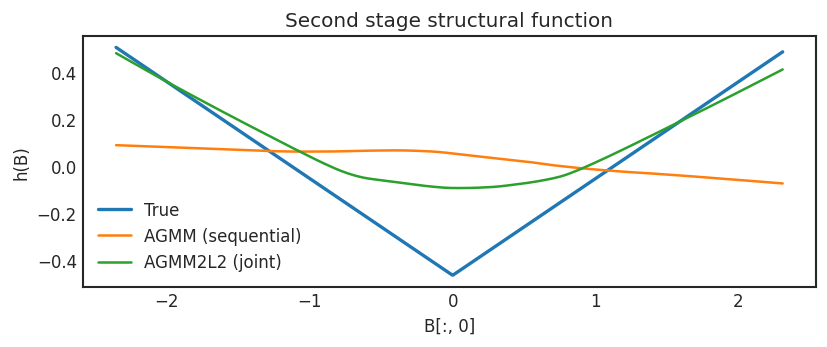

# Second stage h(B)
plt.figure(figsize=(8, 3.2))
plt.plot(B_test[:, 0], h0_B_test, label="True h", linewidth=2)
plt.plot(B_test[:, 0], h_hat_B_test_seq, label="Sequential AGMM")
plt.plot(B_test[:, 0], h_hat_B_test_sim, label="Simultaneous AGMM2L2")
plt.xlabel("B[:,0]")
plt.ylabel("h(B)")
plt.title("Second stage function")
plt.legend(frameon=False)
plt.tight_layout()
plt.show()

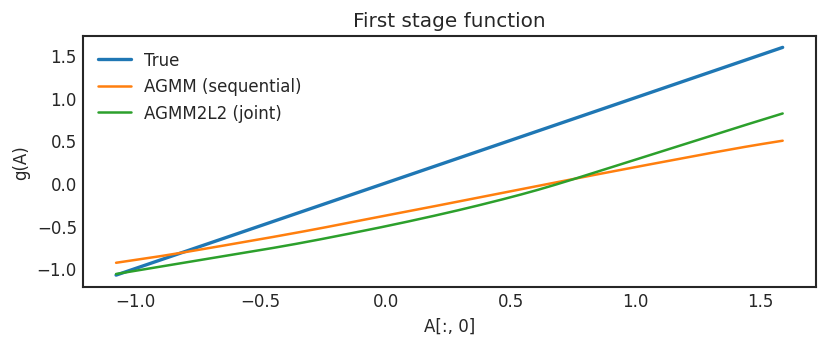

# First stage g(A)
plt.figure(figsize=(8, 3.2))
plt.plot(A_test[:, 0], g0_A_test, label="True g", linewidth=2)
plt.plot(A_test[:, 0], g_hat_A_test_seq, label="Sequential AGMM")
plt.plot(A_test[:, 0], g_hat_A_test_sim, label="Simultaneous AGMM2L2")
plt.xlabel("A[:,0]")
plt.ylabel("g(A)")
plt.title("First stage function")
plt.legend(frameon=False)
plt.tight_layout()
plt.show()

rmse_df = pd.DataFrame([
    {
        "estimator": "sequential_agmm",
        "rmse_h_test": float(np.sqrt(np.mean((h_hat_B_test_seq - h0_B_test) ** 2))),
        "rmse_g_test": float(np.sqrt(np.mean((g_hat_A_test_seq - g0_A_test) ** 2))),
    },
    {
        "estimator": "simultaneous_agmm2l2",
        "rmse_h_test": float(np.sqrt(np.mean((h_hat_B_test_sim - h0_B_test) ** 2))),
        "rmse_g_test": float(np.sqrt(np.mean((g_hat_A_test_sim - g0_A_test) ** 2))),
    },
])

display(rmse_df.round(6))
../_images/longitudinal_notebook_agmm_15_0.png ../_images/longitudinal_notebook_agmm_15_1.png
estimator rmse_h_test rmse_g_test
0 sequential_agmm 0.265000 0.225919
1 simultaneous_agmm2l2 0.132396 0.210635

8) Post-estimation effective-kappa (kappa_eff) for g

# Error directions on train sample
e_g_seq = g_hat_A_train_seq - g0_A_train
e_g_sim = g_hat_A_train_sim - g0_A_train

post_seq = relative_wellposedness_effective_sieve_from_nested_npiv(
    A=A,
    D=D,
    B=B,
    C=C,
    e_g=e_g_seq,
    feature_map=feature_map,
    sieve_grid=sieve_grid,
    eta_grid=eta_grid,
    eta_mode=eta_mode,
    ridge_alpha=ridge_alpha,
    random_state=random_state,
    enforce_nested_rff=True,
)

post_sim = relative_wellposedness_effective_sieve_from_nested_npiv(
    A=A,
    D=D,
    B=B,
    C=C,
    e_g=e_g_sim,
    feature_map=feature_map,
    sieve_grid=sieve_grid,
    eta_grid=eta_grid,
    eta_mode=eta_mode,
    ridge_alpha=ridge_alpha,
    random_state=random_state,
    enforce_nested_rff=True,
)

post_seq_df = pd.DataFrame(post_seq["rows"]).rename(columns={"sieve_value": "J"})
post_seq_df["estimator"] = "sequential_agmm"
post_sim_df = pd.DataFrame(post_sim["rows"]).rename(columns={"sieve_value": "J"})
post_sim_df["estimator"] = "simultaneous_agmm2l2"

post_df = pd.concat([post_seq_df, post_sim_df], ignore_index=True)
if "kappa_eff_cummax" not in post_df.columns:
    post_df["kappa_eff_cummax"] = np.nan

summary_post = (
    post_df.groupby("estimator", as_index=False)
    .agg(
        mean_kappa_eff=("kappa_eff", "mean"),
        max_kappa_eff=("kappa_eff", "max"),
        max_kappa_eff_cummax=("kappa_eff_cummax", "max"),
    )
)

eta_min = min(eta_grid)
J_max = max(sieve_grid)
endpoint = post_df[(post_df["eta"] == eta_min) & (post_df["J"] == J_max)][["estimator", "kappa_eff"]]
endpoint = endpoint.rename(columns={"kappa_eff": "kappa_eff_at_smallest_eta_largest_J"})
summary_post = summary_post.merge(endpoint, on="estimator", how="left")

display(summary_post.round(6))
estimator mean_kappa_eff max_kappa_eff max_kappa_eff_cummax kappa_eff_at_smallest_eta_largest_J
0 sequential_agmm 0.963738 0.989240 0.989240 0.924622
1 simultaneous_agmm2l2 1.306638 1.766061 1.766061 1.766061
# Side-by-side kappa_eff vs J by eta
fig, axes = plt.subplots(1, 2, figsize=(12, 4), sharey=True)
for ax, est_name, title in [
    (axes[0], "sequential_agmm", "Sequential AGMM"),
    (axes[1], "simultaneous_agmm2l2", "Simultaneous AGMM2L2"),
]:
    sub = post_df[post_df["estimator"] == est_name]
    for eta in sorted(sub["eta"].unique()):
        g = sub[sub["eta"] == eta].sort_values("J")
        ax.plot(g["J"], g["kappa_eff"], marker="o", label=f"eta={eta:g}")
    ax.set_title(f"{title}: kappa_eff vs J")
    ax.set_xlabel("J")
    ax.grid(alpha=0.3)
axes[0].set_ylabel("kappa_eff")
axes[1].legend(frameon=False, fontsize=8)
plt.tight_layout()
plt.show()

# Optional eta sensitivity at largest J
fig, ax = plt.subplots(figsize=(8, 4))
for est_name, label in [
    ("sequential_agmm", "Sequential"),
    ("simultaneous_agmm2l2", "Simultaneous"),
]:
    g = post_df[(post_df["estimator"] == est_name) & (post_df["J"] == J_max)].sort_values("eta")
    ax.plot(g["eta"], g["kappa_eff"], marker="o", label=label)
ax.set_xscale("log")
ax.set_yscale("log")
ax.set_title(f"Post-diagnostic: kappa_eff eta sensitivity at J={J_max}")
ax.set_xlabel("eta")
ax.set_ylabel("kappa_eff")
ax.grid(alpha=0.3)
ax.legend(frameon=False)
plt.tight_layout()
plt.show()
../_images/longitudinal_notebook_agmm_18_0.png ../_images/longitudinal_notebook_agmm_18_1.png

9) Compact readout

# Pre-diagnostic divergence heuristic
eta_slice = pre_sieve_df[pre_sieve_df["J"] == J_star].sort_values("eta")
kappa_small_eta = float(eta_slice.iloc[0]["kappa"])
kappa_large_eta = float(eta_slice.iloc[-1]["kappa"])
ratio_small_over_large = kappa_small_eta / max(kappa_large_eta, 1e-12)
any_null_violation = bool(pre_sieve_df["nullspace_violation_flag"].astype(bool).any())
pre_divergence_risk = any_null_violation or (ratio_small_over_large > 5.0)

end_seq = float(summary_post.loc[summary_post["estimator"] == "sequential_agmm", "kappa_eff_at_smallest_eta_largest_J"].iloc[0])
end_sim = float(summary_post.loc[summary_post["estimator"] == "simultaneous_agmm2l2", "kappa_eff_at_smallest_eta_largest_J"].iloc[0])

if end_seq > end_sim:
    larger_eff = "Sequential"
elif end_sim > end_seq:
    larger_eff = "Simultaneous"
else:
    larger_eff = "Tie"

print("Readout:")
print(f"- Pre-diagnostic divergence-risk flag: {pre_divergence_risk}")
print(f"  (nullspace_violation_any={any_null_violation}, kappa_small_eta/kappa_large_eta={ratio_small_over_large:.3f})")
print(f"- Larger effective-kappa at smallest eta and largest J: {larger_eff}")
print(f"  (Sequential={end_seq:.6f}, Simultaneous={end_sim:.6f})")

Readout:
- Pre-diagnostic divergence-risk flag: True
  (nullspace_violation_any=True, kappa_small_eta/kappa_large_eta=316.163)
- Larger effective-kappa at smallest eta and largest J: Simultaneous
  (Sequential=0.924622, Simultaneous=1.766061)
